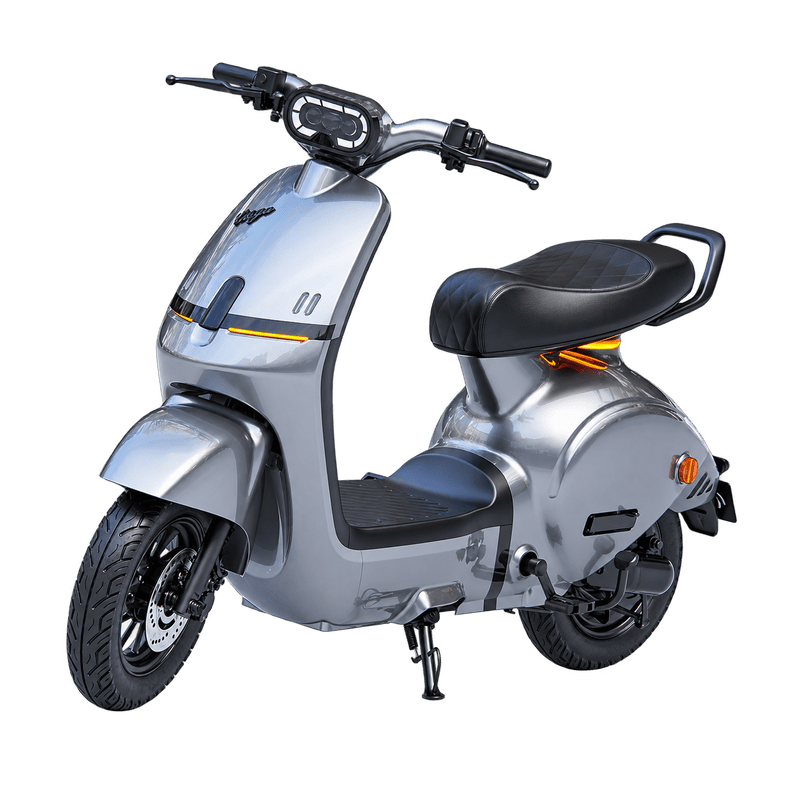

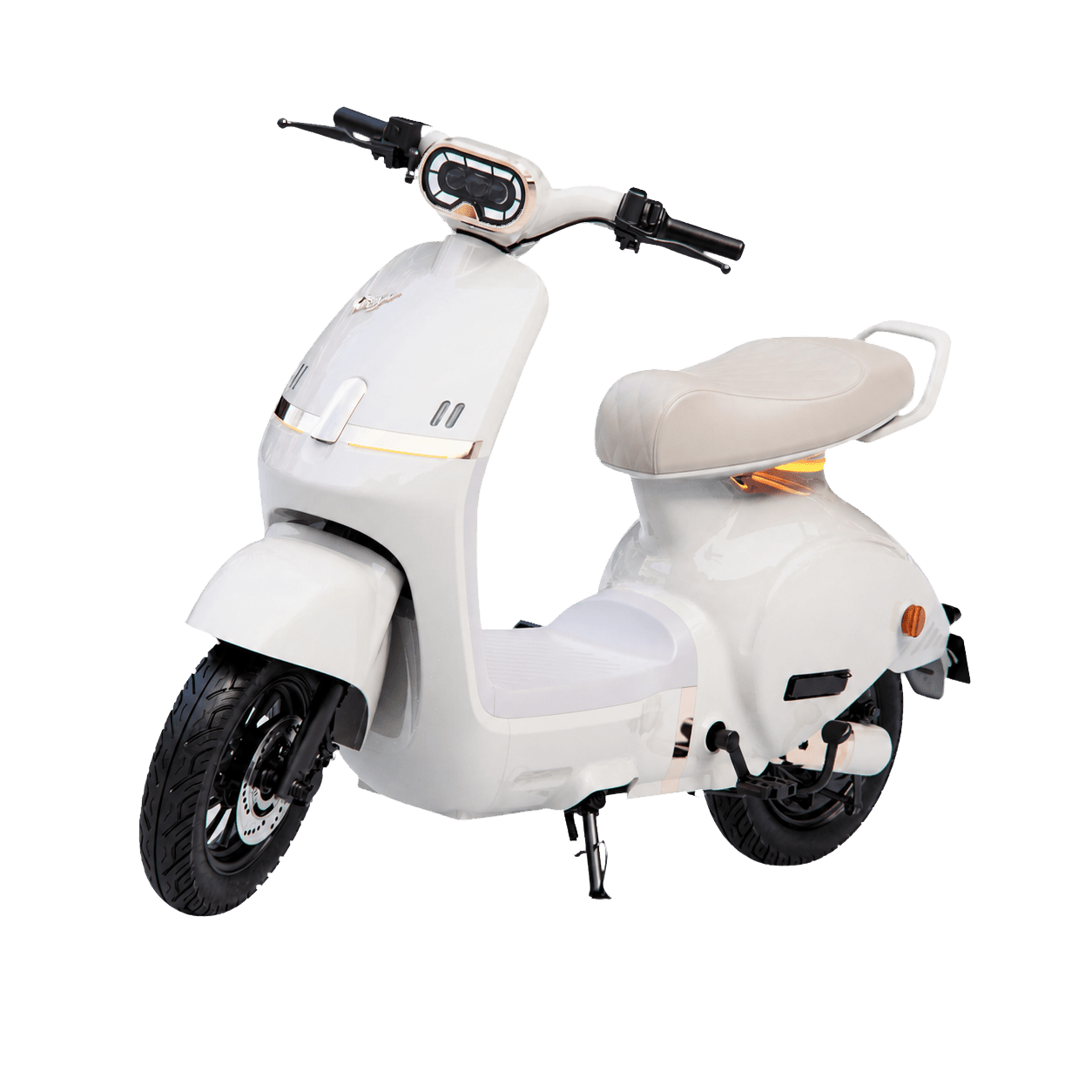

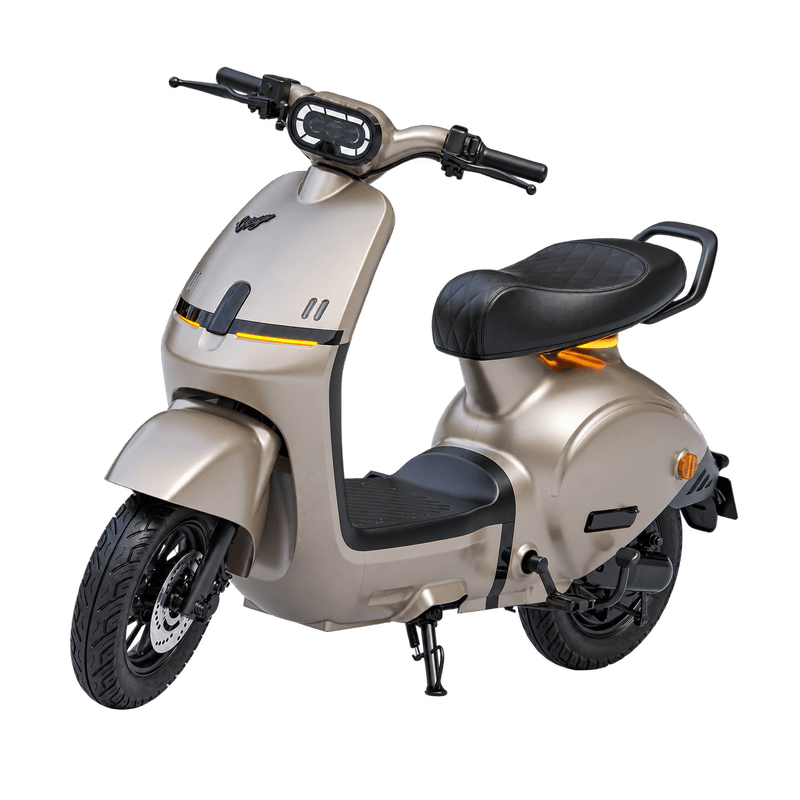

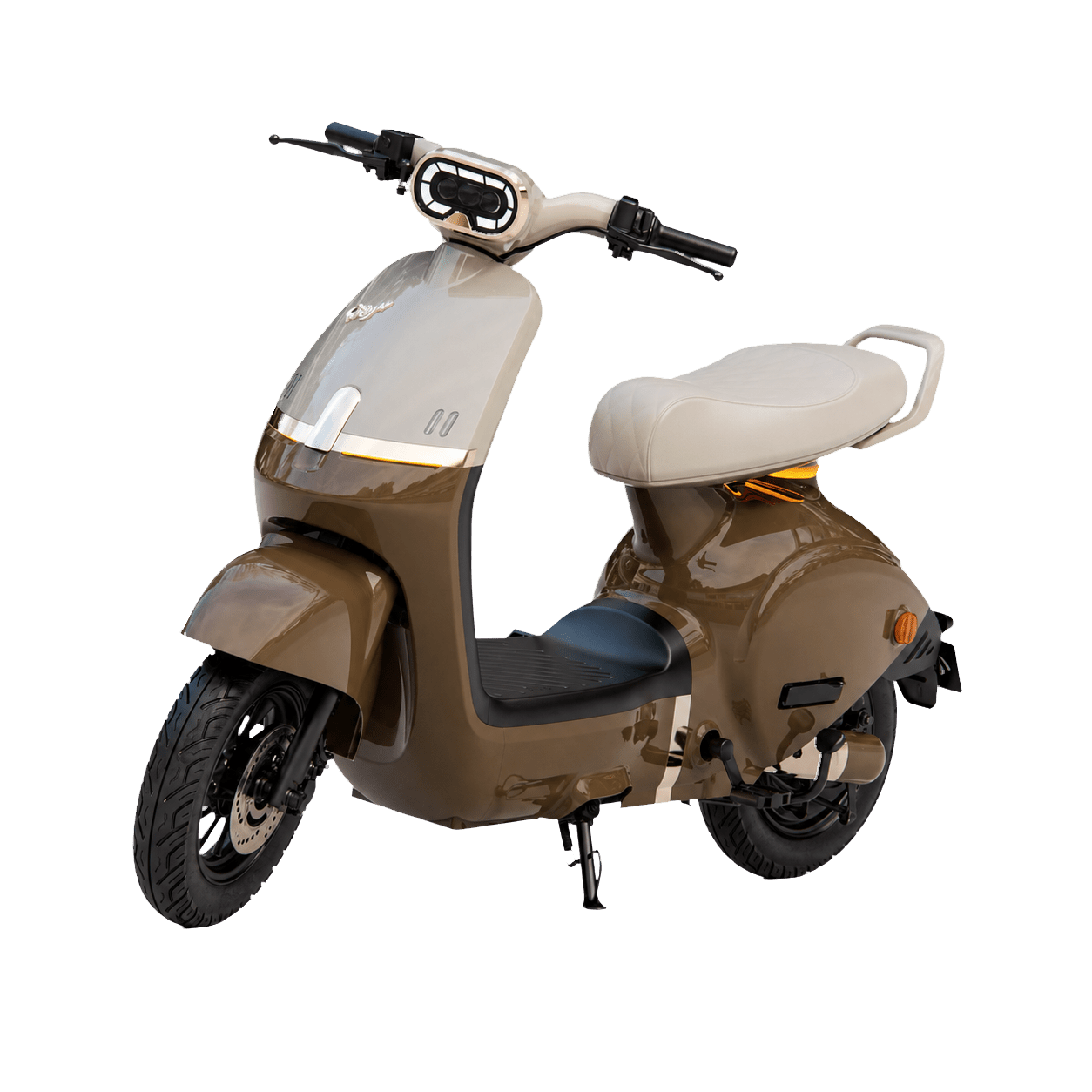

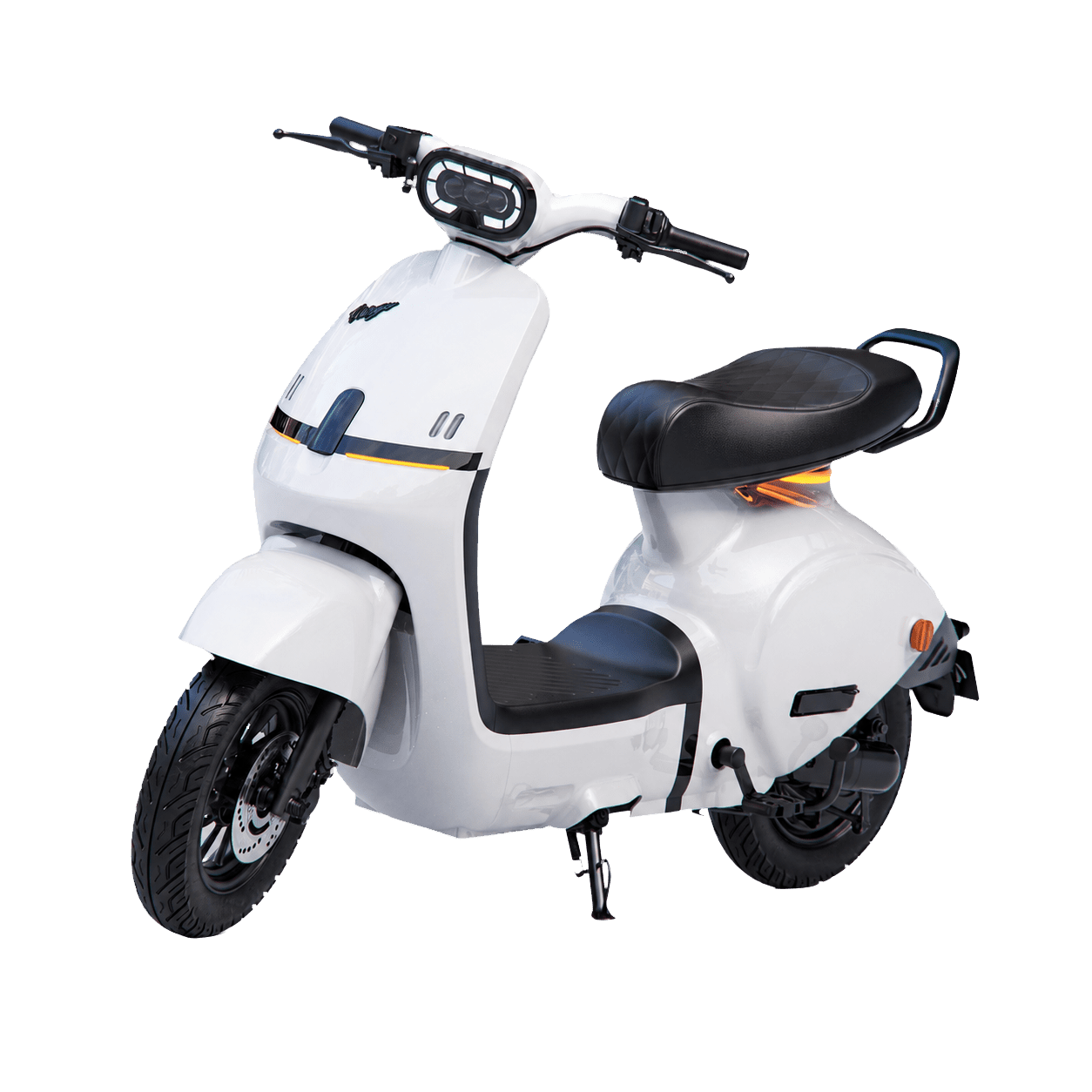

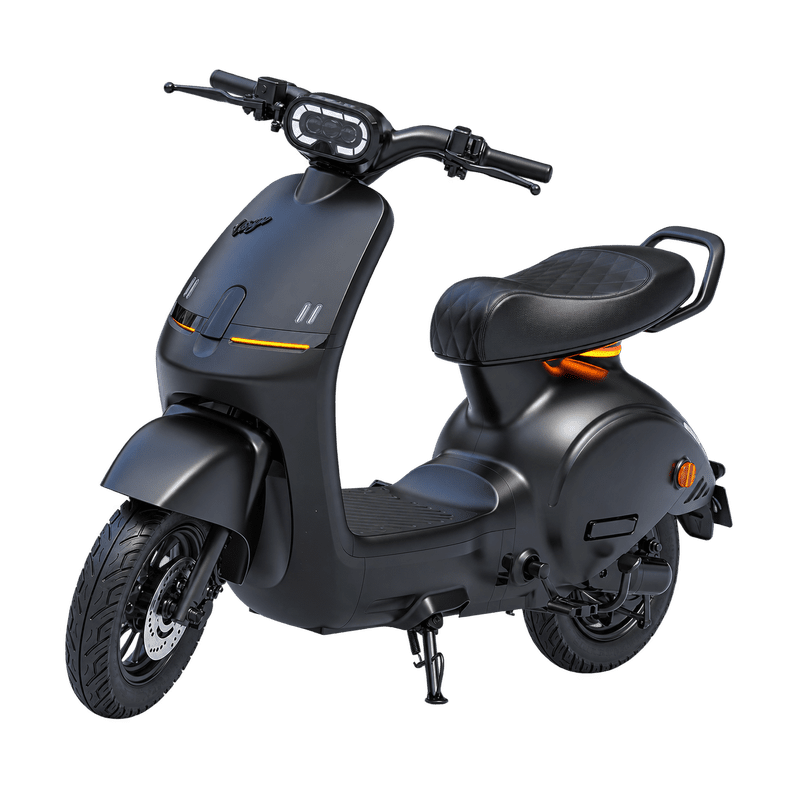

A11 Electric Scooter with NFC Start & TCS

A11 Electric Scooter with NFC Start & TCS - Image 3

A11 Electric Scooter with NFC Start & TCS - Image 4

A11 Electric Scooter with NFC Start & TCS

The A11 electric scooter adds a distinctive touch to urban travel with front ambient lights and rear decorative ring lighting. A custom LED dashboard, Bluetooth audio, and multiple keyless start options complement its everyday functionality. Powered by a 1200W motor, it offers a maximum speed of 60 km/h, with cruise control and traction control included.

Performance

Item

Specification

Motor

1200W Rated Power Hub Motor

Max Speed

60 km/h

Range Options

40 / 55 / 70 km, Depending on Battery Configuration

Speed Modes

2 Selectable Speed Modes with Power Boost Function

Riding Assistance

Cruise Control, Push Assist & Reverse

Battery & Electrical

Item

Specification

Battery Type

Lead-acid Battery

Battery Weight Options

28 / 35 / 42 kg

Controller

48V / 60V / 72V, 12-MOSFET Controller

Instrument Display

Custom LED Instrument Panel

Charging Port

USB

Battery Protection Features

Charging Protection & Low-Battery Alert

Chassis & Safety

Item

Specification

Frame

Steel Tube Trellis Frame

Front Suspension

Dual-Sided Aluminum Alloy Fork Arms with 27 mm Oil-Damped Suspension

Rear Suspension

Twin Oil-Damped Shock Absorbers

Brake System

180 mm Front Disc Brake & 110 mm Rear Drum Brake

Front & Rear Tires

3.00-10 Tubeless Tires

Wheel Rims

Front & Rear: 2.15MT × 10; Aluminum Alloy Front Rim

Traction Control

TCS

Brake Safety

Motor Power Cut-Off During Braking

Hill Assistance

Hill Descent Control, Anti-Rollback & Hill Start Assist

Parking Functions

Parking Mode & Automatic Parking Hold

Dimensions

Item

Specification

Overall Dimensions

1702 × 695 × 1034 mm (Height Excluding Mirrors)

Wheelbase

1200 mm

Seat Height

730 mm

Ground Clearance

125 mm

Vehicle Weight

55 kg (Excluding Battery)

Rated Load Capacity

100 kg

Seat

Two-Person Seat

Standard Equipment

LED Headlight with High & Low Beams
LED Tail & Brake Light
Front & Rear Turn Signals, License Plate Light & Rear Reflector
Front Left & Right Ambient Lights and Rear Decorative Ring Lighting
Multifunction Handlebar Switches
Remote Key, Proximity One-Touch, NFC & Bluetooth Start
Anti-Theft System
One-Touch Repair Function
Bluetooth Audio & Simulated Sound Effects

Available Configurations

Battery Options: 48V20Ah / 60V20Ah / 72V20Ah
Front Basket
Rear Grab Rail
Passenger Footrests
Backrest

Need additional customization?
For advanced customization or OEM project discussions, please contact our team to evaluate your specific requirements.
