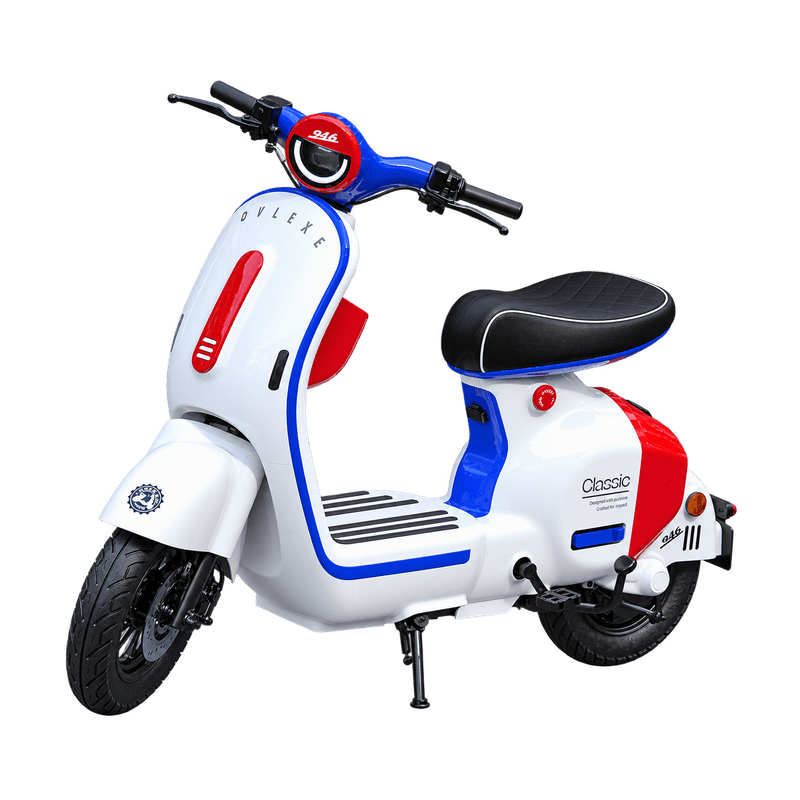

A10 1200W electric scooter white and blue line

A10 1200W Compact Urban Electric Scooter

The A10 is a compact 1200W electric scooter developed for practical urban mobility. With flexible 48V/60V/72V battery configurations and a range of smart control functions, it provides distributors and mobility partners with a versatile platform for different market requirements.

Additional information

Max Speed	60 km/h
Motor Power	1200W Rated Motor Power
Rated Load	100 kg
Tire Size	3.0-10
Battery Qty	One Battery

Performance

Item

Specification

Motor

1200W Rated Power Hub Motor

Max Speed

60 km/h

Range Options

40 / 55 / 70 km, Depending on Battery Configuration

Speed Modes

2 Selectable Speed Modes with Power Boost Function

Riding Assistance

Cruise Control, Push Assist & Reverse

Battery & Electrical

Item

Specification

Battery Type

Lead-acid Battery

Battery Weight Options

28 / 35 / 42 kg

Controller

48V / 60V / 72V, 12-MOSFET Controller

Instrument Display

Custom LED Instrument Panel

Charging Port

USB

Battery Protection Features

Charging Protection & Low-Battery Alert

Chassis & Safety

Item

Specification

Frame

Steel Tube Trellis Frame

Front Suspension

Dual-Sided Aluminum Alloy Fork Arms with 27 mm Oil-Damped Suspension

Rear Suspension

Twin Oil-Damped Shock Absorbers

Brake System

180 mm Front Disc Brake & 110 mm Rear Drum Brake

Front & Rear Tires

3.00-10 Tubeless Tires

Wheel Rims

Front & Rear: 2.15MT × 10; Aluminum Alloy Front Rim

Traction Control

TCS

Brake Safety

Motor Power Cut-Off During Braking

Hill Assistance

Hill Descent Control, Anti-Rollback & Hill Start Assist

Parking Functions

Parking Mode & Automatic Parking Hold

Dimensions

Item

Specification

Overall Dimensions

1671 × 694 × 1075 mm (Height Excluding Mirrors)

Wheelbase

1200 mm

Seat Height

730 mm

Ground Clearance

130 mm

Vehicle Weight

51 kg (Excluding Battery)

Rated Load Capacity

100 kg

Seat

Two-Person Seat

Standard Equipment

LED Headlight with High & Low Beams
LED Tail & Brake Light
Front & Rear Turn Signals, License Plate Light & Rear Reflector
Remote Key, Proximity One-Touch, NFC, Bluetooth & Mechanical Key Start
Anti-Theft System
One-Touch Repair Function
Bluetooth Audio & Simulated Sound Effects

Available Configurations

Battery Options: 48V20Ah / 60V20Ah / 72V20Ah
Front Basket
Rear Grab Rail
Passenger Footrests
Backrest
Rear Seat Cushion

Need additional customization?
For advanced customization or OEM project discussions, please contact our team to evaluate your specific requirements.
